1. Introduction to Pharmaceutical Packaging

Pharmaceutical packaging is a critical component in the healthcare supply chain, ensuring the integrity, safety, and efficacy of medicinal products from production to patient use. This guide explores advanced packaging technologies, materials, machinery, and industry trends to help manufacturers, suppliers, and stakeholders make informed decisions.

2. Key Functions of Pharmaceutical Packaging

• Protection: Shields against physical damage, microbial contamination, UV light, moisture, and oxygen.
• Preservation: Maintains chemical and physical stability during storage and transport.
• Identification: Displays essential information (drug name, dosage, batch number, expiry date).
• Patient Safety: Features tamper-evidence, child-resistant closures, and compliance aids.
• Regulatory Compliance: Adheres to GMP, FDA, EMA, and serialization requirements.

3. Categories of Pharmaceutical Packaging

1) Primary Packaging

Direct contact with the product.

• Examples:
• Blister Packs: PVC/Alu or Alu/Alu films for tablets/capsules.
• Bottles: HDPE/PET (lightweight) or amber glass (UV protection).
• Vials/Ampoules: Type I borosilicate glass for injectables.
• Sachets: Multi-layer laminates (PET/AL/PE) for powders.

Technical Parameters:

• Blister Packs: Water vapor transmission rate (WVTR) <0.01 g/m²/day.
• Vials: USP <660> compliant; hydrolytic resistance Class I.

2) Secondary Packaging

Protects and groups primary packages.

• Examples:
• Cartons with QR codes for traceability.
• Tamper-evident shrink wraps.

3) Tertiary Packaging

Bulk handling and logistics.

• Examples:
• Corrugated boxes with humidity indicators.
• Insulated containers for cold chain (2–8°C).

4. Top 5 Pharmaceutical Packaging Types with Technical Insights

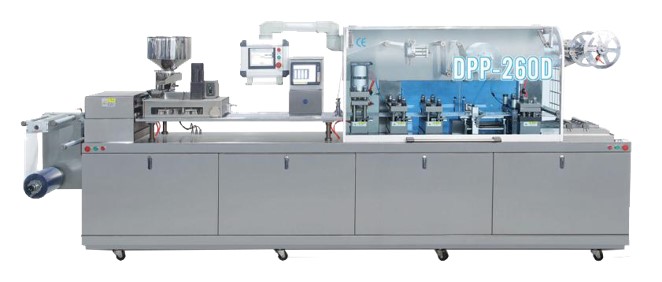

1) Blister Packs

• Materials:
• Cold-Form Films: Alu/Alu (moisture barrier <0.005 g/m²/day).
• Thermoformed Films: PVC/PVDC (oxygen transmission rate <1 cc/m²/day).
• Machinery:
• Rotary Blister Machines: Speed 200–400 blisters/min.
• Thermoformers: Precision ±0.1 mm cavity depth.

2) Bottles

• Materials:
• HDPE: Density 0.94–0.96 g/cm³; chemical resistant.
• PET: Clarity >90%; recyclable.
• Machinery:
• Liquid Fillers: Accuracy ±0.5% of fill volume.
• Induction Sealers: 20–30 kHz frequency for hermetic sealing.

3) Sachets & Stick Packs

• Materials:
• Triplex Films: PET/AL/PE (OTR <0.5 cc/m²/day).
• Machinery:
• VFFS Machines: Speed 100–200 packs/min; servo-driven dosing.

4) Strip Packaging

• Materials:
• Paper-Alu-Poly: Tear resistance >5 N/15mm.
• Machinery:
• Strip Sealers: Heat-seal temperature 120–180°C.

5) Vials & Ampoules

• Materials:
• Type I Glass: SiO₂ >80%; thermal shock resistance ΔT >60°C.
• Machinery:
• Ampoule Fillers: Sterile ISO Class 5 environment.

5. How to Select Pharmaceutical Packaging: Advanced Criteria

6. Cutting-Edge Innovations

• Smart Packaging: NFC tags for real-time tracking.
• Biodegradable Films: PLA-based materials (degrade in 6–12 months).
• Nano-Coated Barriers: SiO₂ coatings to enhance film performance.

7. Global Packaging Suppliers & Machinery Manufacturers

8. FAQs

Q: How do I validate packaging for FDA compliance?
A: Conduct ASTM F1980 accelerated aging tests and USP <671> container integrity tests.

Q: What’s the shelf life of blister-packed drugs?
A: Up to 36 months with Alu/Alu films (WVTR <0.005 g/m²/day).

9. Conclusion

Pharmaceutical packaging is evolving with advanced materials, automation, and sustainability trends. By leveraging technical insights and innovation, manufacturers can ensure product safety, compliance, and patient convenience.
