Lab Herbal Medicine Powder Mixer Compact Fine Chemical Rotary Powder Mixer 50kg 100kg 200kg 300kg

Lab Herbal Medicine Powder Mixer Compact Fine Chemical Rotary Powder Mixer 50kg 100kg 200kg 300kg

This machine adopts labor feeding and enclosed flapper valve for discharging. It will not produce powder dust, and it also will not produce mechanical compression and strong friction during mixing. So the material particles can remain intact. The mixing barrel is made of stainless steel, which won't pollute the material. Besides, this machine has timing device, which can control the mixing time of materials.

  • Product Name :

    Lab Herbal Medicine Powder Mixer Compact Fine Chemical Rotary Powder Mixer 50kg 100kg 200kg 300kg
  • Certification :

    cGMP CE ISO SGS and etc.
  • Lead Time :

    15 Days Fast Delivery.
  • Loading Port :

    Guangzhou/Shenzhen / Shanghai
  • Product Function :

    50kg 100kg 200kg 300kg
  • After-Sales Provided :

    Engineers available to service machinery overseas.
  • Warranty :

    1 Years
  • MOQ :

    1

Overview

This v-shaped mixer machine is suitable to mix more than two kinds of dry powder and granular materials in pharmaceutical, chemical and food industries. It can be equipped with forced agitator according to user's requirements, so as to be suitable for mixing fine powder, cake and materials containing certain moisture. It consists of a work-chamber connected by two cylinders forming a "V " shape. It has two opening on top of the "V" shape tank that conveniently discharged the materials at the end of the mixing process. It can produce a solid-solid mixture.



Main Features

1.This machine is composed of tow asymmetric cylinder, materials will do vertical and horizontal direction flowing, the degree of homogeneity can achieve above 99%.

2.It adopts manual feeding materials and full-enclosed disc valve materials discharge, which do not product powder.

3.There is no mechanical compression and strong friction, so it can maintain the intact of granular materials.

4.The mixing barrel is made of stainless steel, which do not pollute the materials.

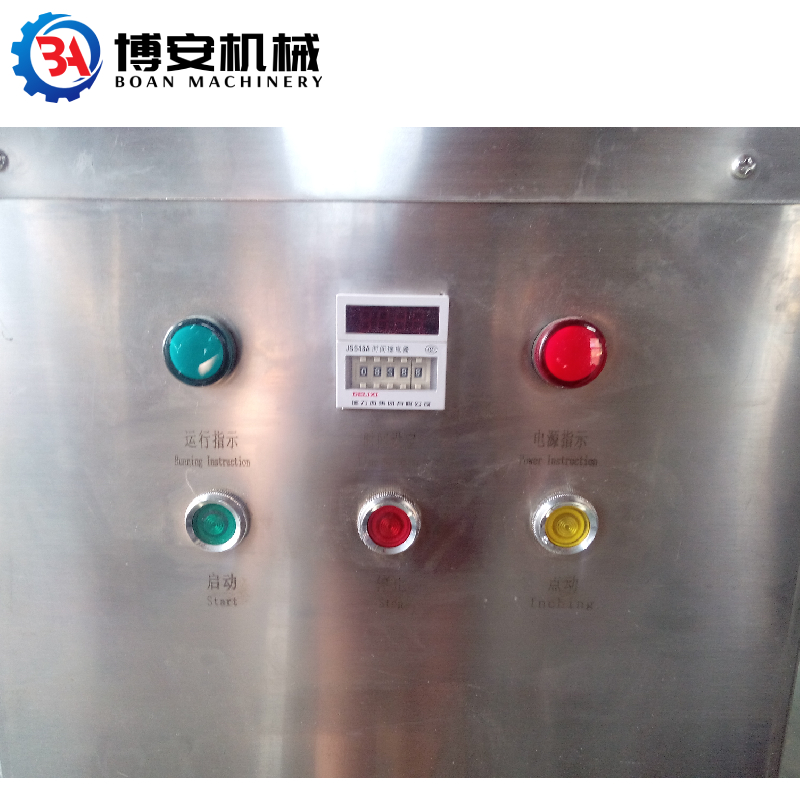

5.In addition, this machine is equipped with timing device that can control the mixing time.

6.It can adapt manual or vacuum feeder machine for feeding, the discharge adapts disk valves.



Main Technical Parameters

Model

VH-100

VH-300

VH-500

Volume of Barrel

100L

300L

500L

Maximum loading

60L

120L

250L

Tube diameter

Φ350mm

Φ500

φ600mm

Feed inlet diameter

φ250mm

Φ300

φ330mm

Outlet diameter

φ80mm

Φ100

φ200mm

Cylinder rotating speed

15r/min

15r/min

15r/min

Power

1.1kW

1.5kW

1.5kW

Power Supply

380V/50Hz

380V

380V/50Hz

Dimensions

1900*800*1190mm

2220*900*1470mm

2400*950*2480mm

Weight

210kg

500

800kg
