NJP-800Automatic capsule filling machine

NJP-800
NJP-800 automatic capsule filling machine
automatic capsule filling machine price
automatic capsule filling machine
Capsule filling machine working principle
Capsule filling machine size 0

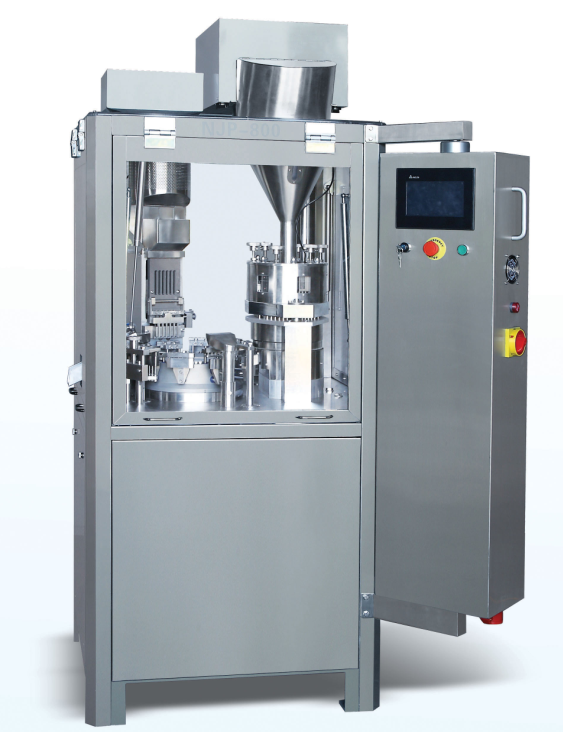

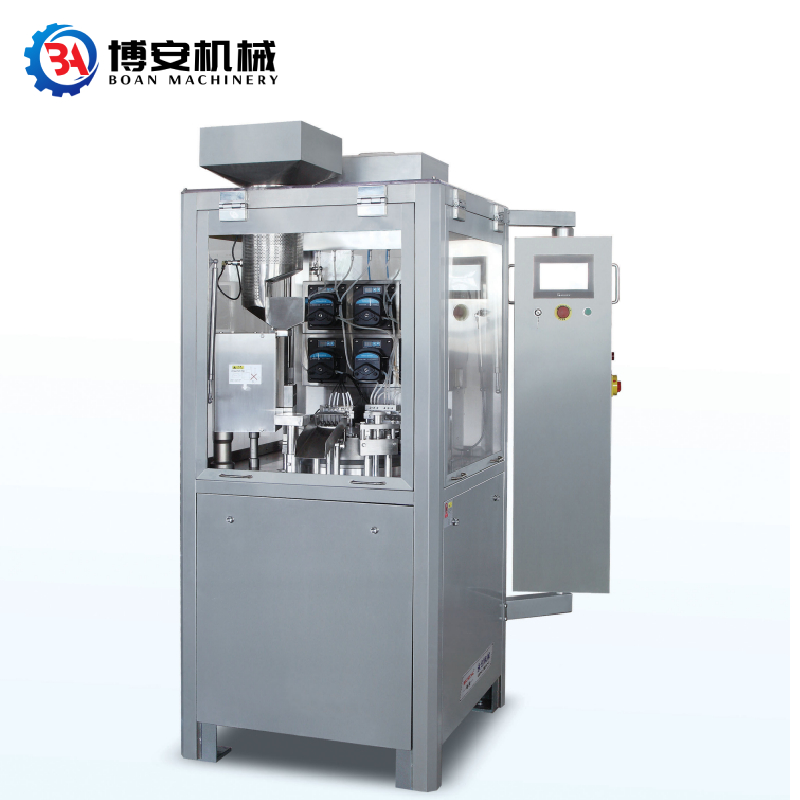

NJP-800Automatic capsule filling machine

The machine is an intermittent motion and hole plate type filling fully automatic capsule filling equipment. It adopt optimization design combined the characteristics of Chinese medicine and the requirement of GMP, it has the characteristics of compact mechanism, small volume, lower noise, precision filling dosage, multi-function, running stably etc. It can finish the following motion at same time: capsule feeding, capsule separating, powder filling, capsule rejecting, capsule locking, finished capsule discharge and module cleaning etc. This machine is designed for meet the volume-produce on the basis of model NJP-8OO automatic capsule filling machine, it increase the lifting mechanism that easy to clean. It saves the cost and manpower for the enterprise that need volume-produce.

  • Product Name :

    NJP-800 Capsule Filling Machine

  • Certification :

    cGMP CE ISO SGS and etc.

  • Lead Time :

    15 Days Fast Delivery.

  • Loading Port :

    Guangzhou/Shenzhen / Shanghai

  • Product Function :

    Capsule size 00#-5# and safety capsule A-E

  • After-Sales Provided :

    Engineers available to service machinery overseas.

  • Warranty :

    1 Years

  • MOQ :

    1
Inquire Now

Overview：







The machine is designed and further improved on the base of original full automatic capsule filling machine from both home and aboard. With high technology and exclusive performance, it has reached international leading level. It is an ideal equipment for capsule and medicine in pharmaceutical industry which is in full compliance with GMP requirements.It adopted PLC programmable controller, stepless frequency inverter, (model A&B) touch panel operation. With fault or lack of material, the machine will automatically alarm and shut down, and eliminate automatic alarm after troubleshooting.







Main Features：



1）It has been improved the inner design turret, and imports beeline bearings for each machine  from Japan directly, so that it can be sure a longer usage-life and precision of machine.The working station cam runs under the good lubricating condition, and maintains the inner lubrication of cam slot to a full extent, increasing the pressure pulverization oil pump, thus extends the operation life of the spare parts.













2）Single movement for both upper and lower segments with two-lip seal provide a much better sealing performance.It is controlled by the computer, has a stepless timing with the frequency-conversion, the numeral showing makes an easy operation and clear appearance.
